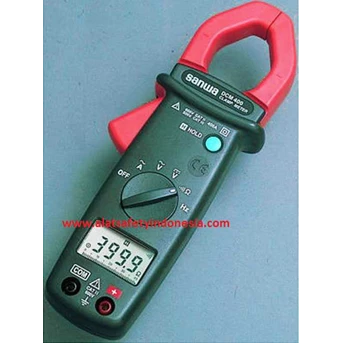

Spesifikasi Detail Tang Ampere AC Sanwa DCM 400:
Country of origin
JAPAN
Dimensions, mass
-
AC A
Meassuring range : 40/400A
Best accuracy : ±(1.9%+5)
Resolustion : 0.01A
AC V
Meassuring range : 400/600V
Best accuracy : ±(1.5%+5)
Resolustion : 0.1V
DC V
Meassuring range : 400/600V
Best accuracy : ±(1%+2)
Resolustion : 0.1V
Resistance
Meassuring range : 400Ω
Best accuracy : ±(1%+2)
Resolustion : 0.1Ω
Frequency (A)
Meassuring range : 20~4k/10kHz
Best accuracy : ±(0.1%+1)
Resolustion : 0.01Hz
Frequency (V)
Meassuring range : 4k/40k/400k/1MHz
Best accuracy : ±(0.1%+1)
Resolustion : 0.01KHz
Continuity
Buzzer sounds at less than approx. 40Ω. Open voltage : approx. 1.5V
Bandwidth
50~60Hz (ACA : 1.9% ±5), 60~500Hz (ACA : 2.5% ±5),
50~500Hz (ACV : 1.5 ±5)
Display
4000
Clamp diameter/Conductor Size
25mm/10x34mm
Withstand voltage
Less than 3700Vrms
Battery
R03x2
Size / Mass
H193xW50xD28mm/approx, 230g
Standard accessories included
Test lead (TL-23a) , Carrying case (C-DCM400) , Instruction manual
