Product Description

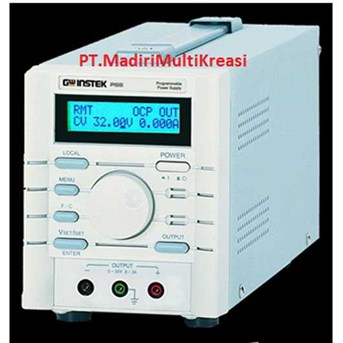

The PSS-Series are single output, 96 or 100W, programmable linear DC power supplies. OVP, OCP, and OTP protect the PSS series and their load from unexpected conditions. The LCD panel simultaneously displays output and other parameters; the regulated cooling fan ensures low noise for comfortable operation. RS232C and GPIB interfaces, SCPI command sets, and LABVIEW drivers make remote control and ATE software development easier. (Note: only RS-232C or GPIB can be installed at one time) The compact PSS series are suitable for any high resolution bench-top or rack mount application.
Specification
PSS-2005
PSS-3203
OUTPUT
Voltage
0~20V
0~32V
Current
0~5A
0~3A
OVP
0~21V
0~33V
LOAD REGULATION
Voltage
< 3mV ( < 5mV rating current > 3A)
Current
< 3mA ( < 5mA rating current > 3A )
LINE REGULATION
Voltage
< 3mV
Current
< 3mA
RESOLUTION
Voltage
10mV
Current
1mA ( 2mA, rating current >3A )
OVP
10mV
PROGRAM ACCURACY (25±5° C)
Voltage
< 0.05% + 20mV
Current
< 0.1% + 5mA (10mA, rating current> 3A)
OVP
< 0.05% + 20mV
RIPPLE & NOISE (20Hz ~ 20MHz)
Voltage
Ripple≦1mVrms / 3mVp-pNoise≦2mVrms / 30mVp-p Current < 3mArms ( < 5mArms, rating current > 3A ) TEMPERATURE COEFFICIENT (0~40° C ) Voltage < 100ppm + 3mV Current < 100ppm + 3mA READBACK RESOLUTION Voltage 10mV Current 1mA ( 2mA, rating current > 3A ) READBACK ACCURACY (25±5° C) Voltage < 0.05% + 10mV Current < 0.1% + 5mA (10mA rating current > 3A) READBACK TEMPERATURE COEFFICIENT Voltage < 100ppm + 10mV Current < 100ppm + 5mA ( + 10mA rating current > 3A ) RESPONSE TIME Voltage Up 10%~90% < 100mS Voltage Down 90%~10% < 100mS ( ≧10% rating load ) DRIFT Voltage < 100ppm + 10mV Current < 150ppm + 10mA INTERFACE Standard : RS-232C
Option : GPIB (IEEE488.2) POWER SOURCE AC100V/120V/220V±10%, 230V (+10%~-6%), 50/60Hz ACCESSORIES User manual x 1
Power cord x 1
Test lead GTL-105 x 1
[or European Test Lead GTL-203 x 1] DIMENSIONS & WEIGHT 108(W) x 140(H) x 315(D)mm
Approx. 4.8kg
