Product Description

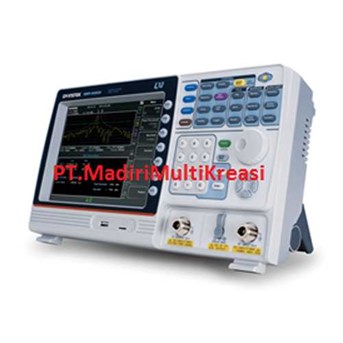

GSP-9300 is a light, compact and high C/P ratio 3GHz spectrum analyzer. The GSP-9300 frequency range stretches from 9kHz to 3GHz and features many functions such as radio frequency and power measurement, 2FSK digital communications analysis, EMC pretest, and active component P1dB point measurement, etc. It can support the fast sweep speed up to 307us. It is the ideal instrument for various application fields such as the basic operation of R&D, research and school lecture, engineering maintenance and test for mass production. This light and compact spectrum analyzer is also suitable for automatic test systems and vehicle mounted operation.

GW Instek understands that high quality is very important consideration for users who are selecting economical spectrum analyzers. GSP-9300, with the built-in preamplifier and the highest sensitivity of -152 dBm (1Hz), is capable of measuring very feeble signals. To obtain the accurate results, the low power measurement uncertainty of GSP-9300 is less than 1.5dB.

The built-in measurement functions of GSP-9300 spectrum analyzer unclude 2FSK digital communications analysis, AM/FM/ASK/FSK signal demodulation & analysis, EMC pretest mode, Harmonic Distortion, TOI, Channel Power, OCBW, ACPR, SEM, Phase Jitter, N-dB Bandwidth, Noise Marker, Frequency Counter and Time Domain power measurement for burst signal, etc.

Tracking generator, an option for GSP-9300 spectrum analyzer, provides supplementary functions such as measuring the insertion loss of RF cable and identifying the frequency response of antenna, filter or amplifier. The P1dB measurement function supports power sweep and P1dB compression point of active component. It supports 6.2GHz power sensor PWS-06. User, via the power meter mode, can conduct related measurement applications without using an independent power meter.

GSP-9300 spectrum analyzer is very user-friendly. All frequently used functions can be applied quickly through function keys and five languages (English, Russian, Traditional Chinese, Simplified Chinese and Japanese) are available for user interface.

Users can use the external software SpectrumShot for EMI test report management and assessment, remote control and waveform data recording for long periods of time. SpectrumShot can be applied to spectrum monitoring for detecting any abnormal radio signals. The software will send out e-mail to inform users if any abnormal situation occurs.

To summarize, GSP-9300 spectrum analyzer is a perfect, light, compact and economical measurement instrument. With height of 210mm and width of 350mm, GSP-9300 is suitable for automatic test systems. It can be mounted on the 19 inches 6U rack. The light and compact design of GSP-9300 is ideal for vehicle mounted operation to carry out field strength measurement such as monitoring satellite communications signals.

Specification

Frequency Frequency Range 9 kHz to 3.0 GHz Resolution 1 Hz Frequency Reference Accuracy ±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability Aging Rate ±2 ppm max. 1 year after last adjustment Frequency Stability over Temperature ±0.025 ppm 0 to 50 °C Supply Voltage Stability ±0.02 ppm Frequency Readout Accuracy Start, Stop, Center, Marker ±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution^*¹) Sweep points 601 Span >= 100 Hz 6 to 601 Span = 0 Hz Marker Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz Accuracy ±(marker frequency indication X frequency reference accuracy + counter resolution)

RBW/Span >=0.02 ;

Mkr level to DNL>30 dB

Frequency Span Range 0 Hz (zero span), 100 Hz to 3 GHz Resolution 1 Hz Accuracy ± frequency resolution^*¹ Phase Noise Offset from Carrier Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz;Average ≥ 40 10 kHz <-88 dBc/Hz Typical² 100 kHz <-95 dBc/Hz Typical 1 MHz <-113 dBc/Hz Typical Resolution Bandwidth (RBW) Filter Filter Bandwidth 1 Hz to 1 MHz in 1-3-10 sequence -3dB bandwidth 200 Hz, 9 kHz, 120 kHz, 1 MHz -6dB bandwidth Accuracy ± 8%, RBW = 1 MHz Nominal³ ± 5%, RBW < 1 MHz Nominal Shape Factor < 4.5:1 Normal Bandwidth ratio: -60dB:-3dB Video Bandwidth (VBW) Filter Filter Bandwidth 1 Hz to 1 MHz in 1-3-10 sequence -3dB bandwidth [1] Frequency Resolution = Span/(Sweep points – 1)

[2] Typical specifications in this datasheet mean that the performance can be exhibited in 80% of the units with a 95% confidence level over the temperature range 20 to 30 °C. They are not covered by the product warranty.

[3] Nominal values indicate expected performance. They are not covered by the product warranty.

Amplitude     Amplitude Range Measurement Range    100 kHz to 1 MHz Displayed Average Noise Level (DANL) to 18 dBm 1 MHz to 10 MHz DANL to 21 dBm 10 MHz to 3 GHz DANL to 30 dBm Attenuator Input Attenuator Range 0 to 50 dB, in 1 dB step Auto or manual setup Maximum Safe Input Level Average Total Power <= 33 dBm Input attenuator
≥10 dB DC Voltage ± 50 V   1 dB Gain Compression Total Power at 1st Mixer > 0 dBm Typical;Fc ≥50 MHz; preamp. off Total Power at the Preamp   > -22 dBm mixer power level (dBm)= input power (dBm)-attenuation (dB)   Displayed Average Noise Level (DANL)^*⁴ Preamp off 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40   9 kHz to 100 kHz, < -93 dBm Nominal     100 kHz to 1 MHz, < -90 dBm – 3 x (f/100 kHz) dB 1 MHz to 10 MHz, < -122 dBm 10 MHz to 3 GHz, < -122 dBm Preamp on 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40   100 kHz to 1 MHz, < -108 dBm – 3 x (f/100 kHz) dB Nominal    1 MHz to 10 MHz, < -142 dBm 10 MHz to 3 GHz, < -142 dBm + 3 x (f/1 GHz) dB [4] DANL spec shall exclude the Spurious Response
Level Display Range Scales Log, Linear Units dBm, dBmV, dBuV, V, W   Marker Level Readout 0.01 dB Log scale 0.01 % of reference level Linear scale Level Display Modes Trace, Topographic, Spectrogram Single / split Windows Number of Traces 4 Detector Positive-peak, negative-peak, sample, normal, RMS(not Video) Can be setup for each trace separately Trace Functions Clear & Write, Max/Min Hold, View, Blank, Average   Absolute Amplitude Accuracy Absolute Point Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 20 to 30°C; signal 0 dBm   Preamp off ± 0.3 dB Ref level 0 dBm; 10 dB RF attenuation Preamp on ± 0.4 dB Ref level -30 dBm; 0 dB RF attenuation Frequency Response Preamp off Attenuation: 10 dB; Reference: 160 MHz; 20 to 30°C   100 kHz to 2.0 GHz ± 0.5 dB 2.0GHz to 3.0 GHz ± 0.7 dB Preamp on Attenuation: 0 dB; Reference: 160 MHz; 20 to 30°C   1 MHz to 2.0 GHz ± 0.6 dB 2.0GHz to 3.0 GHz ± 0.8 dB Attenuation Switching Uncertainty Attenuator setting 0 to 50 dB in 1 dB step   Uncertainty ± 0.25 dB reference: 160 MHz, 10dB attenuation RBW Filter Switching Uncertainty 1 Hz to 1 MHz ± 0.25 dB reference : 10 kHz RBW Level Measurement Uncertainty Overall Amplitude Accuracy ± 1.5 dB 20 to 30°C; frequency > 1 MHz; Signal input 0 to -50 dBm; Reference level 0 to -50 dBm;
Input attenuation 10 dB;
RBW 1 kHz; VBW 1 kHz; after cal; Preamp Off ± 0.5 dB Typical Spurious Response Second Harmonic Intercept Preamp off; signal input -30dBm; 0 dB attenuation   +35 dBm Typical; 10 MHz < fc < 775 MHz +60 dBm Typical; 775 MHz ≤ fc < 1.5 GHz Third-order Intercept Preamp off; signal input -30dBm; 0 dB attenuation   > 1dBm 300 MHz to 3 GHz Input Related Spurious < -60 dBc Input signal level -30 dBm, Att. mode, Att=0 dB; 20-30 degree C Residual Response (inherent) <-90 dBm Input terminated; 0 dB attenuation; Preamp off Sweep    Sweep Time Range 22ms to 1000s Span >= 100 Hz 50us to 1000s Span = 0 Hz; Min Resolution = 10 us Sweep Mode Continuous; Single   Trigger Source Free run; Video; External   Trigger Slope Positive or negative edge   RF Preamplifier    Frequency Range 1 MHz to 3 GHz   Gain 18 dB Nominal
(installed as standard) Front Panel Input/Output    RF Input Connector Type N-type female   Impedance 50 ohm, nominal   VSWR <1.6 :1 300 kHz to 3 GHz; Input attenuator ≥ 10 dB Power for Option Connector Type SMB male   Voltage/Current DC +7V / 500 mA max With short-circuit protection USB Host Connector Type A plug Protocol Version 2.0 Supports Full/High/Low speed MicroSD Socket Protocol SD 1.1 Supported Cards MicroSD, MicroSDHC Up to 32GB capacity Rear Panel Input/Output    Reference Output Connector Type BNC female   Output Frequency 10 MHz   Output Amplitude 3.3V CMOS   Output Impedance 50 ohm   Reference Input Connector Type BNC female   Input Reference Frequency 10 MHz   Input Amplitude -5 dBm to +10 dBm   Frequency Lock Range Within ± 5 ppm of the input reference frequency   Alarm Output Connector Type BNC female; Open-collector   Trigger Input/ Gated Sweep Input Connector Type BNC female   Input Amplitude 3.3V CMOS   Switch Auto selection by function   LAN TCP/IP Interface Connector Type RJ-45   Base 10Base-T; 100Base-Tx; Auto-MDIX   USB Device Connector Type B plug For remote control only; supports USB TMC Protocol Version 2.0 Supports Full/High speed IF Output Connector Type SMA female   Impedance 50 ohm Nominal IF Frequency 886 MHz Nominal Output level -25 dBm 10 dB attenuation; RF input: 0 dBm @ 1 GHz; Earphone Output Connector Type DVI-I ( integrated analog and digital) , Single Link Compatible with VGA or HDMI standard through adapter RS232 Interface Connector Type D-sub 9-pin female Tx,Rx,RTS,CTS GPIB Interface (Optional) Connector Type IEEE-488 bus connector   AC Power Input Power Source AC 100 V to 240 V, 50 / 60 Hz Auto range selection Battery Pack (Optional) Battery pack 6 cells, Li-Ion rechargeable, 3S2P With UN38.3 Certification Voltage DC 10.8 V   Capacity 5200 mAh / 56Wh   General    Internal Data storage 16 MB nominal   Power Consumption <65 W   Warm-up Time < 30 minutes   Temperature Range +5 °C to +45 °C Operating -20 °C to + 70 °C Storage Weight 4.5 kg (9.9 lb) Inc. all options (Basic+TG+GPIB+Battery) Dimensions 210 x 350 x 100 (mm) Approximately 8.3 x 13.8 x 3.9 (in) Tracking Generator^*5 (Optional)    Frequency Range 100 kHz to 3 GHz   Output Power -50 dBm to 0 dBm in 0.5 dB steps   Absolute Accuracy ± 0.5 dB @160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C Output Flatness Referenced to 160 MHz, -10 dBm   100 kHz to 2 GHz ± 1.5 dB 2 GHz to 3 GHz ± 2.0 dB Output Level Switching Uncertainty ± 0.8 dB Referenced to -10 dBm Harmonics < -30 dBc Typical, output level = -10 dBm Reverse Power +30 dBm max.   Connector type N-type female   Impedance 50 ohm Nominal Output VSWR < 1.6:1 300 kHz to 3 GHz, source attenuation ≥ 12 dB [5] The minimum RBW filter is 10 kHz when the TG output is ON.
USB Power Sensor (Optional)    Type Average power sensor Model: PWS-06 Interface to Meter USB cable to GSP930 Front-Panel USB Host   Connector Type N-type male, 50 ohm nominal   Input VSWR 1.1: 1 Typical 1.3: 1 Max Input Frequency 1 to 6200 MHz   Sensing Level -32 to +20 dBm   Max. Input Damage Power <= 27 dBm   Power Measurement Uncertainty
@ 25 °C -30 dBm to +5 dBm:   1 MHz to 3GHz: ±0.10 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +5 dBm to +12 dBm:   1 MHz to 3GHz: ±0.15 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +12 dBm to +20 dBm:   1 MHz to 3GHz: ±0.20 dB typical ±0.40 dB max. 3 GHz to 6 GHz: ±0.20 dB typical ±0.40 dB max. Power Measurement Uncertainty
@ 0 to 25 °C -30 dBm to +5 dBm:
